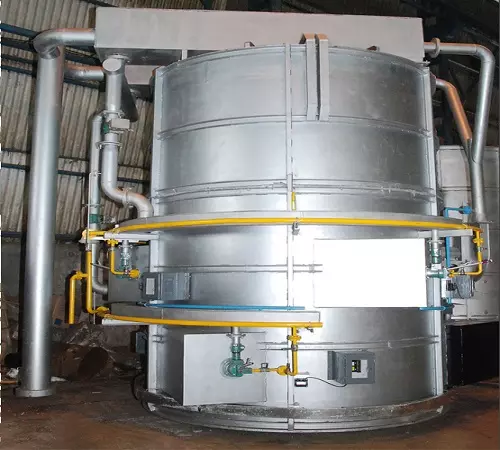

Bell Furnace

Description

Bell Annealing Furnace brings in excellent temperature uniformity, consistent quality and good production rates. Bell Furnace is suitable for black, bright and spherodized annealing of steel coils, non-ferrous strips, wires and general heat treatment processes up to 1100°C. Bright annealing of cold-rolled steel strip coils and heat treatment of medium and thick hot-rolled plate, long products and wire coils are done using a bell-type furnace.

Type of furnace is usually rectangular or cylindrical form, single or multi-stack gas or electrically heated. Continuous purging of ammonia is deployed throughout the annealing cycle to avoid decarburizing. Overhead crane is used to load the base and move the equipment. Coils are tilted to the right position and placed on the annealing base.

The convection and heat transfer occurs in the base assembly. Forced atmosphere circulation is used with the help of radial fans for temperature up to 950°C to improve convection. The cooling happens when the furnace is removed with inner cover acting as a protective atmosphere. In both strip annealing and wire annealing, the convection flow goes up on the sides and down the centre.

JRFURNACE has earned great laurels with Rectangular Bell Furnace . These come with a well-tested design, easy servicing and reliable performance which makes it a product with an optimal pay-off. We rightly believe in the happiness of our customers and deliver the products only after various rounds of quality checks performed by our highly efficient and skilled team members.
