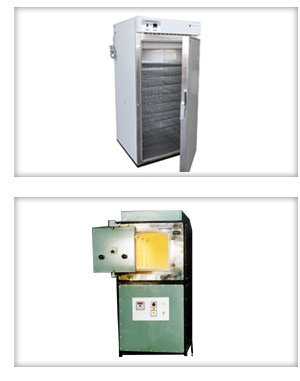

LABORATORY FURNACE EXPORTERS
Laboratory Furnace Manufacturers and Exporters India
We are the trusted laboratory furnace exporters in India offer quality range of products at industry leading prices. Our wide product range is always fabricated by opting ultra-grade raw materials and advance manufacturing techniques. The shell of the furnace is fabricated out of 1.2 mm thick mild steel sheets reinforced with minimum 35 x 35 x 5 mm angles.
With our continuous efforts and dedication, we are able to establish ourselves as one of the most reputed Laboratory Furnaces Manufacturers in the furnace industry. Due to its durability and high quality standards, our products are widely demanded in local and international markets. Further, we have appointed qualified team of experts that allow us to give most innovative product solutions as needed by our clients and industries.
Our products are known everywhere due to endless to their endless features and capabilities. We are also able to create satisfied client base with our wide range of services and product line. Being leading laboratory furnace exporters in India, we make sure that our products are manufactured based on international standards and quality guidelines only.
What are the features?
- Superior design and industry leading prices
- Longer shelf life and amazing hearth designse
- Environmental friendly products with remarkable efficiency
- Versatile model designs that are 100 percent safe in use
We are the quality Laboratory Furnaces Manufacturers in India test each and every product on several parameters before their final delivery to clients. The advance costing ceramic fiber product makes our furnaces more durable and energy efficient. To know more about our products and to get custom solutions from us, contact our expert team right away.
| Model | Chamber Size ( Inside Working) | Power | ||||
| Width | Height | Depth | 950° C | 1150°C | 1200°C | |
| SMF-3 | 100 mm | 100 mm | 225 mm | 1.8 kw | 2.0 kw | 2.2 kw |
| SMF-4 | 125 mm | 125 mm | 250 mm | 2.0 kw | 3.0 kw | 3.5 kw |
| SMF-6 | 150 mm | 150 mm | 300 mm | 3.0 kw | 3.5 kw | 4.0 kw |
| SMF-12 | 200 mm | 200 mm | 300 mm | 6.0 kw | 6.0 kw | 7.5 kw |
| HSMF-27 | 300mm | 300mm | 300mm | 7.5 kw | 7.5 kw | 9.0 kw |
| HSMF-54 | 300mm | 300 mm | 600 mm | 9.0 kw | 9.0 kw | 12.0 kw |
| POWER SUPPLY : | 220 V,1 PHASE , 2 WIRE, UP TO 3.0 KW. 415 VOLTS ,3 PHASE ,4 WIRE ABOVE 3.0 KW | |||||
TECHICNAL SPECIFICATION
SHELL OF THE FURNACE :
The shell of the furnace would be fabricated out of 1.2 mm thick mild steel sheets reinforced with minimum 35 x 35 x 5 mm angles. The front of the furnace would be fabricated out of 1.6 mm thich mild sheets. All mild steel members will be welded and or bolted together as per our standard practice, whenever required to construct a strudy structure.
HEATING CHAMBER :
The heating chamber will be made out of cast refractory muffle .The muffle will be cast with special grade refractory cement to withstand temperature up to 1300 Deg.C.
HEATING ELEMENTS :
Spirally Shaped, Helical would heating element will be made out of suitable grade of fe.cr.al.heating element alloy wire, having sufficient cross section and designed to operate of safest surface watt loading for enhance element life.
INSULATION :
The heating chamber would be insulated with a various layers of cold and / or heat face insulating bricks followed by ceramic / mineral wool insulating material as per out standard practice.
CONTROLS :
The furnace will be controlled with a thermocouple sensed digital temperature controller and air brake magnetic contactor this control eqpts / instruments will be rpovided just below the furnace chamber.
| FURNACES UP TO 1700°C | ||||||
| Model | Chamber Size ( Inside Working) | Power | ||||
| Width | Height | Depth | 1400° C | 1450°C | 1500°C | |
| HSMF-3 | 100 mm | 100 mm | 225 mm | 2.0 kw | 3.0 kw | 3.5 kw |
| HSMF-4 | 125 mm | 125 mm | 250 mm | 3.0 kw | 4.5 kw | 4.8 kw |
| HSMF-6 | 150 mm | 150 mm | 250 mm | 4.5 kw | 4.5 kw | 4.8 kw |
| HSMF-12 | 200 mm | 200 mm | 300 mm | 6.0 kw | 6.0 kw | 7.5 kw |
| HSMF-27 | 300mm | 300mm | 300mm | 7.5 kw | 7.5 kw | 9.0 kw |
| HSMF-54 | 300mm | 300mm | 600 mm | 9.0 kw | 9.0 kw | 12.0 kw |
| POWER SUPPLY | 220 V,1 PHASE , 2 WIRE,UP TO 4.8 KW 415 VOLTS ,3 PHASE ,4 WIRE UP TO 4.8 KW | |||||
GENERAL FEATURES
- Silicon carbide heating elements in matched sets ensure better temperature uniformity longer element life.
- Elements can be mounted horizontally or vertically.
- Hot face lining made of special refractory bricks followed by high density ceramic fibre insulations of different grades.
- Thyristorised power control.
- Micro - processor based pid temperature controller / programmer with thermocouple through rear / roof of heating chambers.
